Angle Type-SQ. Drive

Angle Type-SQ. Drive

MODEL SQ. Drive Bolt Capacity Torque Range 5~6kg/cm2 Free Speed Weight Length Noise Level Average Air Cons. @Load Hose size Shut off
mm(inch) N.m (ft-lb) 5kg/cm2 6kg/cm2 kgs mm dB(A) m3/min ft3/min mm N/A
TDIS-80RH 12.7(1/2") M10-M12 50-70(36.8-51.5) 2600 2800 1.7 281 82 0.45 15.9 8 A
TDI-80RH 12.7(1/2") M10-M12 50-70(36.8-51.5) 2600 2800 1.7 281 82 0.45 15.9 8 N
TDIS-70RH 12.7(1/2") M10-M12 40-60(29.5-44.2) 2000 2200 1.6 281 82 0.4 14.1 8 A
TDI-70RH 12.7(1/2") M10-M12 40-60(29.5-44.2) 2000 2200 1.6 281 82 0.4 14.1 8 N
TDIS-70RG 9.5(3/8") M10 30-50(22.1-36.8) 1800 2000 1.6 281 82 0.4 14.1 8 A
TDI-70RG 9.5(3/8") M10 30-50(22.1-36.8) 1800 2000 1.6 281 82 0.4 14.1 8 N
TDIS-70R 9.5(3/8") M8-M10 20-31(14.7-22.8) 4200 4500 1.4 272 80 0.4 14.1 8 A
TDI-70R 9.5(3/8") M8-M10 20-31(14.7-22.8) 4200 4500 1.4 272 80 0.4 14.1 8 N
TDIS-60R 9.5(3/8") M8 14-24(10.3-17.7) 4400 4700 1.3 264 80 0.4 14.1 8 A
TDI-60R 9.5(3/8") M8 14-24(10.3-17.7) 4400 4700 1.3 264 80 0.4 14.1 8 N
TDIS-50R 9.5(3/8") M6-M8 9.5-17(7-12.5) 4000 4300 1.2 253 80 0.32 11.3 6.5 A
TDI-50R 9.5(3/8") M6-M8 9.5-17(7-12.5) 4000 4300 1.2 253 80 0.32 11.3 6.5 N

* Shut off type: N: Non Shut-off; A: Auto Shut-off

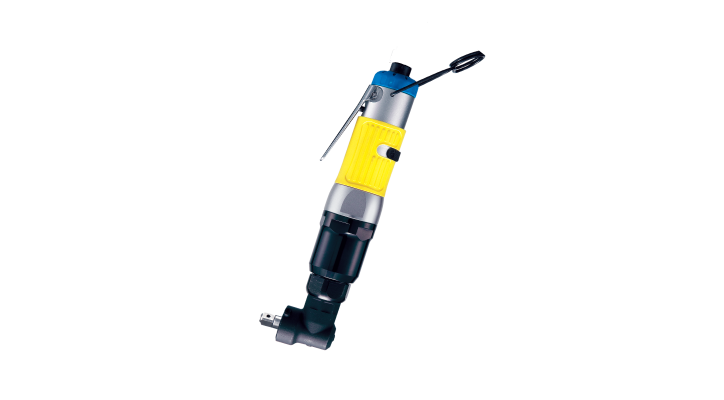

  • TDI-60R

    TDI-60R

    1/2" Air Impulse Wrench, Non Shut-Off
  • TDIS-50R

    TDIS-50R

    1/2" Air Impulse Wrench, Shut-Off

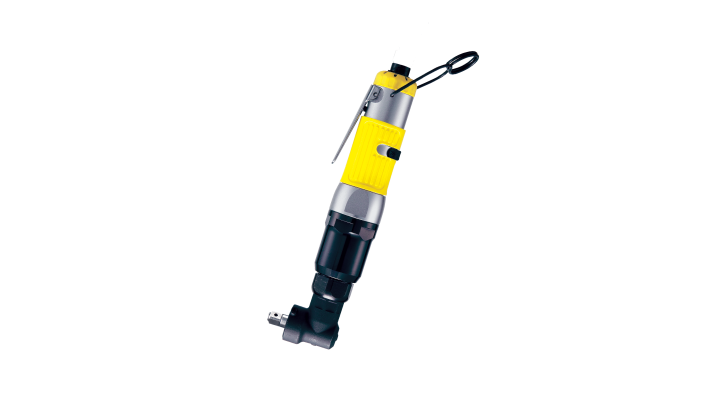

  • TDI-50R

    TDI-50R

    1/2" Air Impulse Wrench, Non Shut-Off
